ZR Serial Belt Filter Press
Profile
The structure of the belt type filter press is mainly composed of transmission device, liquid mix agitator, feeding distributor, gravity dehydration device, prepress-dewatering porous roller, high-pressure dewatering roller, alignment extrusion roller, tensioning device, frame, deviation correcting device, pneumatic device, filter net, cleaning device, discharging device, bearing and pedestal, filtrate collecting device, protective device, and centralized electric control cabinet.
Product Advantages
1. The frame is reinforced, the appearance is elegant, the bearing seat is firm. The equipment is treated with waterproof and the special anti-corrosion process.
2. The gravity dewatering area is equipped with an advanced distributor to make the material distribution uniform and prolong the life of the filter belt.
3. The high degree of automation of continuous operation from feed to discharge mud cake
4. Different materials are equipped with different structures of filter belts, with high filtration accuracy.
Belt Press Filter Working Principle

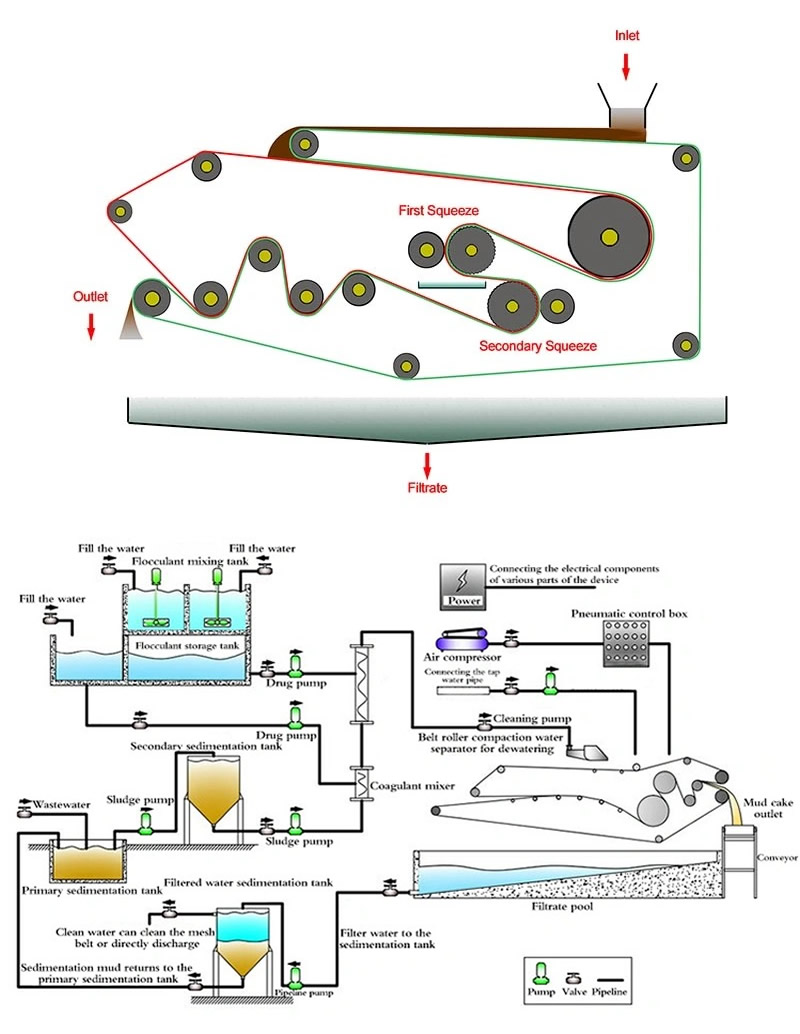

The raw material, passing through the distributor, is pre-pressed and dehydrated in the wedge area, and then further squeezed and dehydrated in the large area low pressure drainage area composed of porous drainage rollers. Then, the raw material with a certain degree of dryness is pressed by three sets of high-intensity squeezing, i.e. roller I, roller II and roller III. Then the raw material with extremely low water content is pressed and dehydrated again by the mesh belt at the discharge port. Finally the dry filter cake is discharged. It basically meets the requirements of major varieties for moisture content, and the entire process is subject to extrusion and shear forces.

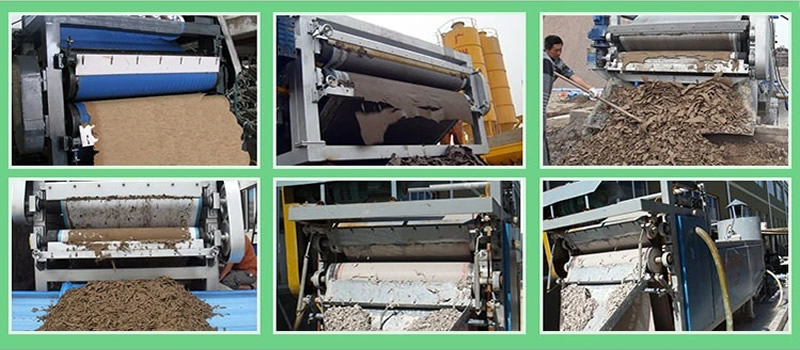

Application
Model technical parameters
| Model | Belt width
(mm) |
Mud Processing
capacity
(Ton/H) | Filter cake
production
(Ton/H) | Sediment
percentage
(%) | Total Power of
equipment
(KW) | Total power
(KW) | Dimensions
L*W*H(MM) | Weight
(KG) |
| Zr-1000P8L | 1000 | 10-16 | 2-3 | 75-85 | 3 | 10 | 5500*2000*2100 | 4500 |
| Zr-1500P8L | 1500 | 15-25 | 4-5 | 75-85 | 4 | 13 | 5800*2400*2200 | 6500 |
| Zr-2000P8L | 2000 | 25-35 | 6-7 | 75-85 | 5.5 | 17 | 7500*2900*2300 | 7600 |
| Zr-2500P8L | 2500 | 30-40 | 10 | 75-85 | 5.5 | 17 | 7800*3200*2500 | 9200 |
| Zr-3000P8L | 3000 | 40-50 | 12-15 | 75-85 | 11 | 33 | 12500*3500*2500 | 14500 |
| Zr-3500P8L | 3500 | 50-60 | 15-17 | 75-85 | 11 | 33 | 13000*14000*2500 | 15500 |
