Rotary Drum Sand Screen Machine Trommel Screen Solid Waste Soil

Product Categories
Shanghai ZhongRui environmental protection equipment Co., Ltd.
Contact Now

Rotary Drum Sand Screen Machine Trommel Screen Solid Waste Soil

  • 1
  • 2

Brand Name : ZR

Model Number : GTS

Place of Origin : Shanghai, China

MOQ : 1 Piece

Price : Price Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000PCS/Year

Delivery Time : 20-30 days

Packaging Details : Nude Cargo/Pallet/Wooden Case/Customize

Type : Mineral Processing & Screening Equipment

Material : Carbon Steel

Material Feature : Heat Resistant

Energy Saving : Energy Saving

Production Capacity : 350t/h

Power : 11kw

Diameter : 1500mm

Length : 4500mm

Max Feed Size : 400mm

HS Code : 8474100000

Contact Now

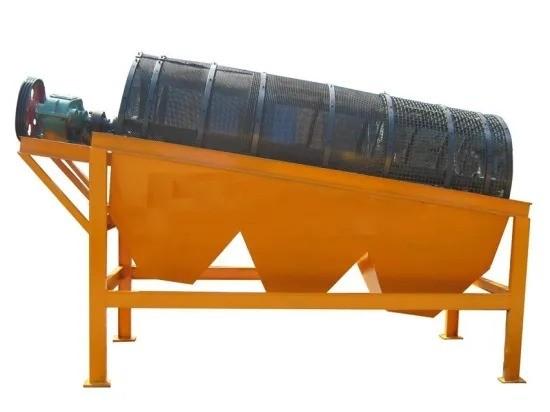

GTS1545 Rotary Drum Sand Trommel Screen

Technical Parameters

Model: GTS1545

Production Capacity: 350t/h

Power: 11kw

Diameter: 1500mm

Length: 4500mm

Max feed size: 400mm

Sieve size: 0-100mm

Technical Parameter

Model Yield
(Ton/H)		 Power
(kw)		 Diameter
(mm)		 Length
(mm)		 Feed size
(mm)		 Sieve size
(mm)		 Dimension
L*W*H(mm)
GTS1015 50 3.0 1000 1500
≤300		 0~100 2600*1400*1700
GTS1020 100 4.0 1000 2000 3390*1400*2140
GTS1225 160 5.5 1200 2500 4146*1600*2680
GTS1530 250 7.5 1500 3000 4460*1900*2820
GTS1545 350 11 1500 4500
≤400		 5960*1900*3080
GTS1848 450 15 1800 4800 6500*2350*4000
GTS2055 600 22 2000 5500 7500*2550*4800
GTS2265 800 30 2200 6500 8500*2750*5000

Features

Largest processing capacity in the industry
Unique screen design, result in higher capacities, longer screen life, and no material clogging
Heavy-duty feed hopper and extension
Discharge chute
Gear drive mechanism
The variable speed drive mechanism​

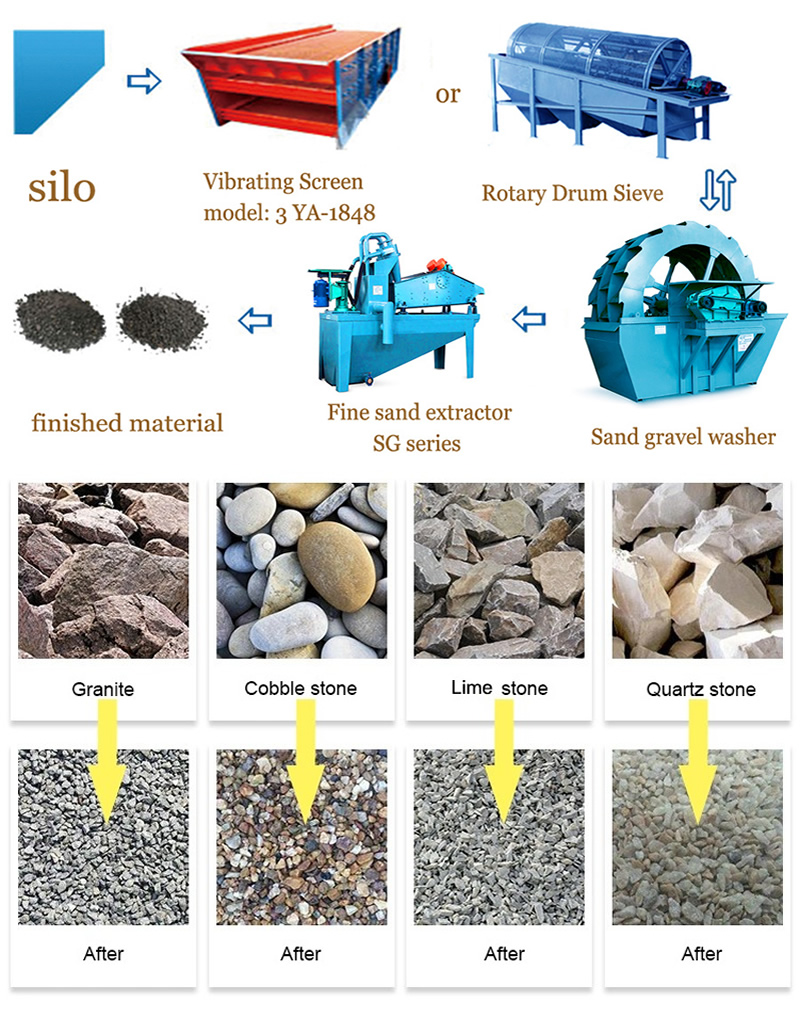

Application

Rotary Drum Sand Screen Machine Trommel Screen Solid Waste Soil

​Rotary Drum Sand Screen Machine Trommel Screen Solid Waste Soil
